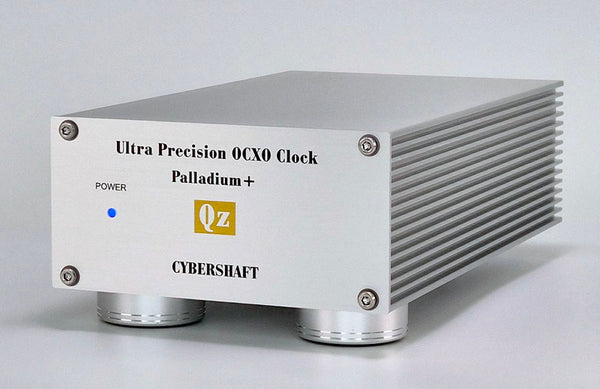

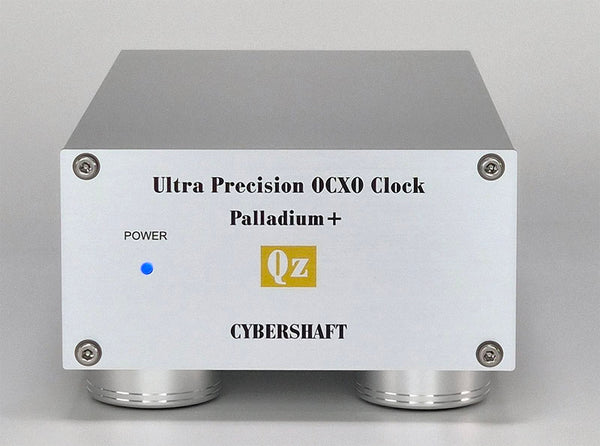

Palladium Plus Ultra Precision OCXO 10MHz Master Clock ( Single output /EXT DC power model )

[ [ [ Precautions when ordering ] ] ]
This product is a model for external DC power supply only.
You must have an external DC power supply that meets the specifications of this product.
Our recommended external DC power supply product is "LTPW03/05/06".
"LTPW03/05/06" does not include DC cable and AC cable.
Please purchase them as an option.
We will ship your order approximately 3-4 weeks after your order is confirmed.

[ Product Overview ]

This is a master clock for price-conscious high-end audio, bringing together Cybershaft's technology and experience. Equipped with an ultra-high precision OCXO, its single output allows for high performance at a low price.
In addition to a dedicated external DC power supply, it also features an internal regulator circuit with four next-generation LT3045 linear regulators installed in parallel, providing ultra-low noise and ultra-high PSRR.
We offer grades OP19 to OP11, carefully selected for OCXO phase noise and Allan variance characteristics.
*The external DC power supply is sold separately from the Palladium+ main unit.

[ Features ]
・This product uses a brand new OCXO, carefully selected for its exceptional stability through long-term calibration.
・The OCXO unit is housed in a sturdy box constructed with a magnetically shielding plate and heat-shielding board, ensuring an environment in which the OCXO's performance can be maximized.
・This Cybershaft clock is designed to be the most compact and high-performance clock in the industry.
・It features three-point support feet made of die-cast aluminum for stability on any surface. Optional spike insulators can be installed using 4mm screws.
・The output impedance can be set to 50Ω or 75Ω. (Utility model registered)
・The output GND potential can be set to either connect to the unit's GND or isolated. (Utility model registered) This allows for precise adjustment to the complex GND processing that varies from audio system to audio system.
・The DC supplied from an external DC power supply is regulated by four ultra-low-noise, ultra-high PSRR LT3045 diodes inside the unit. This ensures truly clean DC is supplied to the OCXO.
・The internal circuit board uses a 70μm thick copper foil board, twice the usual thickness. The internal layout has been repeatedly verified to ensure the best possible condition.
・Equipped with an LED monitor that ensures the oven circuit is operating properly and manages the OCXO unit temperature.
・Characteristics are rigorously measured using highly precisely calibrated measuring equipment. Clock quality is guaranteed by plotting the phase noise and Allan variance at the output section for each unit.
・Comes with a two-year free repair warranty.

[ Ultra-low noise, ultra-high PSRR linear power regulator ]
Equipped with a main power circuit that has four new generation linear regulators, LT3045, in parallel instead of the previous two.

DC Input → 4 LT3045s in Parallel (RMS Noise 0.4µV) → 12V DC → Main Circuit/OCXO
Connecting multiple LT3045s in parallel reduces the device's internal semiconductor noise.
[Self-Noise Example] 0.8µV RMS for one LT3045 / 0.57µV RMS for two parallel LT3045s / 0.4µV RMS for four parallel LT3045s
Furthermore, by using the LTPW06 for the external DC power supply, a two-stage configuration (6 parallel + 4 parallel LT3045s) is achieved, resulting in a ripple rejection ratio (PSRR) of over 100dB, making the ripple unmeasurable.

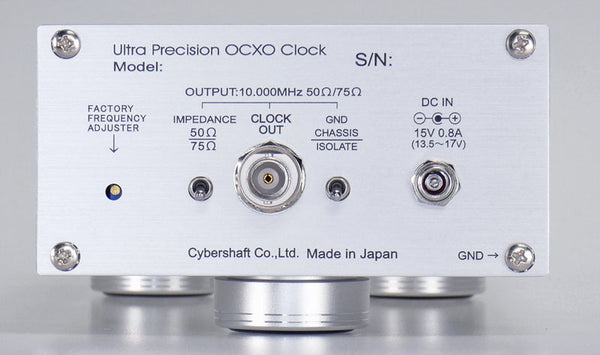

[ Output impedance 50Ω / 75Ω switching function ]
The impedance of the external 10MHz clock input of the audio equipment is divided into 50Ω or 75Ω products. In measuring equipment, 50Ω is common, but in audio equipment, the input impedance of the word clock is 75Ω, so the input of external 10MHz is also 75Ω in many cases. Impedance matching is effective in preventing the generation of reflected waves, so it is best to match the impedance of the external clock input of your audio equipment.
For our clock products, the clock output impedance can be set to 75Ω / 50Ω according to the device you are using with a switch. (Registered utility model)
Even if your audio equipment changes in the future, impedance matching of the external 10MHz clock can be reliably supported.

[ Output GND insulation / enclosure GND selection function ]
The output GND potential can be switched between "insulated from the chassis GND" and "housing GND". If the output GND of this unit is grounded in common, the GND potential difference between this unit and the connected device will flow through the GND of the connection cable, causing noise called a GND loop. Therefore, it is usually better to insulate the GND of each output for better noise resistance. Depending on the system you are using, the GND of each device may be firmly grounded. If there is no GND potential difference between these devices, it may be better to have the output GND grounded to the chassis GND to obtain better results against noise.
Since the environment of the audio system is various, you can choose the most suitable method according to your own environment.

[ Palladium OP grade OCXO characteristic selection value ]

The OCXO installed in this product uses a stable individual after several months of calibration of a new OCXO unit. In order to perform the optimum selection as a clock for audio, we perform a comprehensive evaluation of the phase noise characteristics and the short-term stability (Allan variance) that can be scrutinized more closely.
The product cannot be evaluated by measuring only the output characteristics of the built-in OCXO unit. Our calibration measurement is not directly measured from the output of the OCXO unit, but from the output terminal of this product in order to evaluate all the performance including the buffer circuit.
-Selection reference value Products have different options depending on the phase noise characteristics.
[ Selection characteristic value ]

The above values are guaranteed values measured individually, not general catalog values (Typical), so the quality of the product is constant.
* For the phase noise offset of 1Hz, an appropriate value with an offset of 1.000Hz to 1.099Hz is used to avoid averaging errors. Measuring phase noise is very sensitive and has instrumental and measurement errors. The indicated phase noise values include measurement errors, not absolute values. The indicated phase noise value is a value measured under the same conditions of our company and is an index of product grade classification.

[ OP grade guarantee card ]
An "OP grade certificate" with hologram is always attached to each OP grade product.
A tamperproof sticker is attached in the center. A hologram is printed on the right edge. In addition, a hologram sheet with the serial number described in the option grade certificate will be attached to the OCXO unit inside the main unit. Please be sure to check when purchasing for second use.

[ Compatible audio products ]
ESOTERIC Grandioso K1X、K1、P1X、P1X、P1、D1X、D1、K-01XD、K-01Xs、K-01X、K-01、K-03XD、K-03Xs、K-03X、K-03、K-05Xs、K-05X、K-05、K-07Xs、K-07X、K-07、D-02X、D-02、D-05X、D-07X、P-021、P-02X、、N-01XD、N-01、N-03T、N-05、G-0、G-0s、G-0Rb、G-02、G-03X、G-25U、TASCAM CG1000 / dCS　Vivaldi clock、Paganini clock、Scarlatti Clock / MUTEC iCLOCK、MC-3+、MC-3+USB / Antelope Audio Isochrone OCX HD、OCX-V、OCX、TRINITY、PURE2、ZODIAC PLATINUM / BRAINSTORM DCD-8 / Phaseteck HD-7A / Phasemation HD-7A192 / SFORZATO DSP-Vera、DSP-Dorado、DSP-Pavo、DSC-Vera、DSC-Drado、DSC-Grus、DSP-01、DST-01、DSP-03、DSP-05 / TEAC UD-503、UD-505、NT-503、NT-505 / SPEC RMP-X1 / Sound Warrior SWD-CL10 / TechDAS D-7、D7i / RATOC RAL-DSDHA2 / M2TECH EVO DAC TWO PLUS、HIFACE EVO TWO / CH Precision C1,D1 / aurender W20/ soulnote D-2、S-3 / SOtM sMS-200ultra、tX-USBultra、SOtM sNH-10G (require master clock input function) /SHENZHENAUDIO GUSTARD U16、Singher SU-2 / iFi Audio Pro iDSD / UpTone Audio EtherREGEN / Audio Gd DI-20HE、DI-20、R-7HE (version 2020)、R-7 (version 2020) /VMV SMSL D3
Other, master clock generator with 10MHz clock input, CDP, DDC, DAC, Audio HUB, etc.
*If you are uncertain about the specifications of the device you are using, please contact us with the model name.

[ Specification ]
Accessories: instruction manual, test report, and phase noise/Alan dispersion characteristic graph
BNC cable is not included.
Output: 10 MHz x 1 lines, sine wave
Output level: 1.6 V p-p  ±10% ( with 50 ohm setting)
Output impedance: 50 ohms/75 ohms Each system is individually switchable
Output GND potential: Main body GND/insulation can be switched (each system can be switched independently)
Body size: W110mm x D212mm x H70mm (including protrusions) Optional Spike insurator use H78mm
Weight approx. 1 kg
External DC power supply: DC 13.5V-17V 1A
External DC plug standard: 2.1 mm/5.5 mm screwable
○ 2-year free repair guarantee
*Design and specifications are subject to change without notice for improvement.
