This product is designed for use with an external DC power supply only.
You will need to provide an external DC power supply that meets the specifications of this product.
Recommended external DC power supply products are "LTPW01/02/03/05/06".
A DC cable is not included with this product.
Please purchase it separately as an option.
If you are already using an OCXO product with LTPW01/02/03/05/06, you can supply power from the second DC output terminal of the LTPW0x. In that case, please purchase only the dedicated DC cable separately.
If you are providing your own external DC power supply, please use a linear power supply with 14V to 17V, 0.3A (or higher).
Orders will be shipped approximately 15 days after confirmation.
Features:

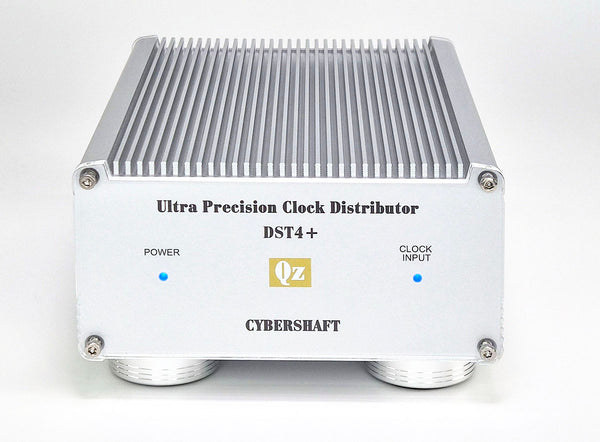

High-precision signal distribution of clock signals requires a high-precision distributor.
This signal distributor can distribute all of our OCXO-grade high-precision 10MHz signals to four outputs with virtually no loss of characteristics.
It features four outputs, making it suitable for situations where multiple clock signals are required in equipment configurations such as single DACs or hubs. Each output can be set to either 50 ohms or 75 ohms impedance. (Utility model registered)
The output/input GND potential can be set to either connect to the main unit's GND or isolated. This allows for precise handling of the complex GND processing that differs for each audio system. (Utility model registered)
The input signal is compatible with all levels output from all of our clock products. Input impedance is switchable between 50 ohms and 75 ohms.
Output gain can be selected between 0dB (voltage ratio 1x) or +4dB (voltage ratio 1.58x).
DC supplied from an external DC power supply is regulated to a clean 12V by six LT3045 transistors in parallel and supplied to the circuit.
Features a three-point aluminum die-cast support foot for stable mounting on any surface. The 4mm screws allow users to easily replace the support feet with spikes or other types.
This unit is designed for external DC power only; please ensure you have an external DC power supply. It can be connected to any available DC output connector on our LTPW01/02/03/05/06 external power supplies. (DC cable sold separately)
Comes with a two-year free repair warranty.
Changes from previous models:
- Switchable input impedance (50 ohms/75 ohms) and ISOLATE/CHASSIS GND potential
- Internal power supply circuit: LT3045x1 → LT3045x6 in parallel
- High-purity impedance matching circuit using an L network at 75 ohms output
About the output impedance 50Ω / 75Ω switching function :
Audio equipment's external 10MHz clock input impedance is divided into 50Ω and 75Ω products. While 50Ω is common in measuring instruments, audio equipment often uses a 75Ω input impedance for its word clock, and therefore the external 10MHz input is also frequently 75Ω. Impedance matching is effective in preventing reflected waves, so it's best to match the impedance of your audio equipment's external clock input.
Output GND insulation / chassis GND selection function :
The output GND potential can be switched between "insulated from the chassis GND" and "housing GND". If the output GND of this unit is grounded in common, when multiple devices are connected, the GND potential difference of each device will flow through the GND of the connection cable, causing noise called a GND loop. Therefore, it is usually better to insulate the GND of each output for better noise resistance. Depending on the system you are using, the GND of each device may be firmly grounded. If there is no GND potential difference between these devices, it may be better to have the output GND grounded to the chassis GND to obtain better results against noise.
Since the environment of the audio system is various, you can choose the most suitable method according to your own environment. The bottom plate of this machine is equipped with a housing GND terminal.
Specification :
4 signal distributor for ultra-low phase noise OCXO
Accessories : Instruction manual, test report, phase noise / Allan Deviation characteristic graph of signal passage characteristics, 50Ω terminators 3pcs
* DC power cable is not included. Please be sure to purchase it as an option.

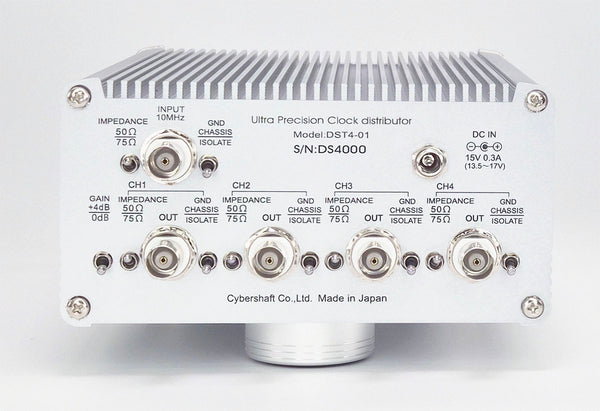

Input: 10MHz sine wave 0.5Vp-p to 3.0Vp-p
Input impedance: 50 ohms / 75 ohms ( Switchable )
Input GND potential: Main unit GND / insulation can be switchable
Output gain: 0 dB / + 4 dB switching type
Output: 10MHz x 4 systems sine wave
Output impedance: 50 ohms / 75 ohms (each system can be switched independently)
Output GND potential: Main unit GND / insulation can be switched (each system can be switched independently)
External DC power supply: DC 13.5V to 17V 0.3A Recommended voltage 15V
External DC plug standard: 2.1mm / 5.5mm can be screwed in
Body size: W141mm x D210mm x H90mm (including protrusions) H100mm when using options
Weight 1 kg
○ With a 2-year free repair warranty ○ Products with domestic product liability insurance
* Design and specifications are subject to change without notice for improvement.
