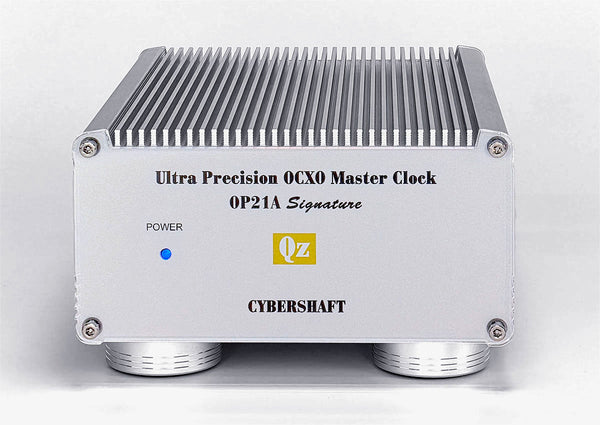

Introducing the Flagship Master Clock, a Culmination of Cybershaft's Expertise and Experience
・The Signature series is Cybershaft's flagship master clock, a complete upgrade from previous models, offering both performance and reliability.
・This product features 2-channel output and is compatible with a wide range of systems, from single-DAC systems to systems requiring multiple 10MHz inputs, such as hubs.
・It uses a brand-new OCXO unit specifically designed for the Signature series, undergoing extensive calibration and selection to ensure only the most stable units are installed.
・The power supply circuit features an ultra-low noise, ultra-high PSRR power supply, with a total of 6 next-generation LT3045 linear regulators, six in the main power supply. (The DC-only model has six.)
・In addition to the 2-channel model, the Signature series is also available in 6-channel and 4-channel output models.
★We will ship your order approximately 3-4 weeks after your order is confirmed.
★As of Jan 2026, the OP23A-OP21A phase noise and Allan Deviation characteristics are the world's best for an audio clock.
Signature Series Features:
Features:
・This unit features a high-performance OCXO unit with phase noise of less than -123dBc/Hz and Allan variance of less than 1.3E-13, making it rare even for research institutions. (OP23A)
・The OCXO unit is housed in a sturdy steel box constructed with magnetically shielding plates and heat-shielding boards, ensuring optimal performance.

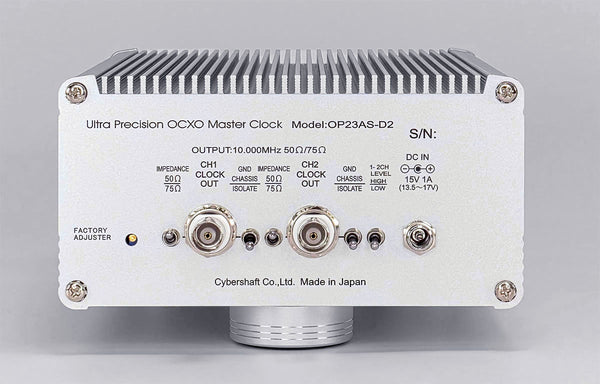

・2 output channels are convenient for applications requiring multiple clock signals, such as single DACs or hubs. Each channel can be set to 50Ω or 75Ω impedance. (Utility Model Registered)
・Each channel's output GND can be individually configured to connect to the unit's GND or isolate it. (Utility Model Registered) This allows for precise adjustments to the complex GND configurations that vary between audio systems.
・The clock output level can be switched between 1.6Vp-p and 3.0Vp-p, enabling compatibility with virtually any audio device. (All channels switched simultaneously)
・The main circuit power supply also utilizes six LT3045, a next-generation linear regulator with ultra-low noise and ultra-high PSRR, to thoroughly eliminate noise.
・The internal circuit board uses a 70μm thick copper foil board, twice the thickness of the standard. The internal layout, which has been repeatedly tested, is optimally designed.
・The bottom of the chassis is made of 2 mm thick aluminum material + 8.4 mm thick laminated iron material, and has a robust vibration damping structure with a total of 10.4 mm thick plate. In addition, a strong magnetic shield using a 5.2 mm thick laminated iron material is configured around the board.
・Three-point support feet made of die-cast aluminum ensure stability on any surface. Optional spike insulators can be installed using 4mm screws.
・Precision characteristics are measured using highly calibrated measuring equipment. Phase noise and Allan variance are plotted for each unit to ensure clock quality.
・We stand by our product's reliability with a 2-year complimentary repair warranty.
Output GND Insulation / Enclosure GND Selection Function:
Power Supply System:
Equipped with a 6-unit parallel circuit that maximizes the performance of the new generation linear regulator LT3045

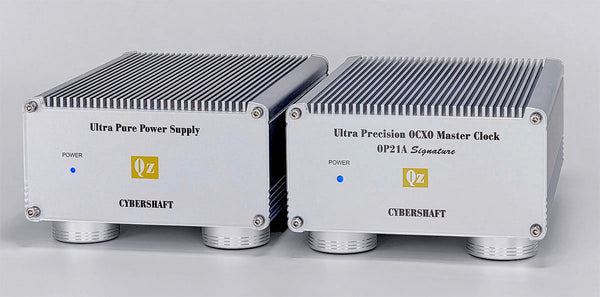

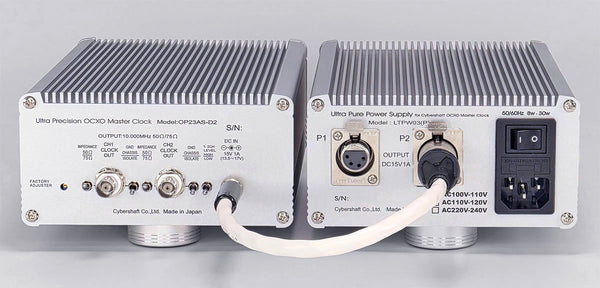

< AC/DC Dual-Purpose Model / DC-Only Model >
Our product features an OCXO unit, stabilized and calibrated over several months, ensuring optimal performance as an audio clock. We don't simply gauge the built-in OCXO unit's output characteristics. Our rigorous calibration measures from the product's output terminal, providing a holistic view, inclusive of the buffer circuit's performance.
[ Selection Characteristic Value ]
| OP GRADE | Phase Noise @offset 1Hz/10Hz | Allan Deviation tau=1sec |
| OP23A Signature | > -123 dBc/Hz / -143 dBc/Hz | > 1.30E-13 (0.0003ppb/s) |
| OP22A Signature | > -122 dBc/Hz / -143 dBc/Hz | > 1.40E-13 (0.00014ppb/s) |
| OP21A Signature | > -121 dBc/Hz / -143 dBc/Hz | > 1.50E-13 (0.00015ppb/s) |
| OP21A | > -121 dBc/Hz / -143 dBc/Hz | > 1.60E-13 (0.00060ppb/s) |
| OP20A Signature | > -120 dBc/Hz / -140 dBc/Hz | > 1.95E-13 (0.000195ppb/s) |
| OP19A | > -119 dBc/Hz / -140 dBc/Hz | > 3.00E-13 (0.00030ppb/s) |
* We have changed the previously announced reference value for each grade to the selection value actually used by us and released it. All products already sold are shipped with the OP selection values in this table.
OP grade guarantee card :
An "OP grade certificate" with hologram is always attached to each OP grade product.
A tamperproof sticker is attached in the center. A hologram is printed on the right edge. In addition, a hologram sheet with the serial number described in the option grade certificate will be attached to the OCXO unit inside the main unit. Please be sure to check when purchasing for second use.
Compatible audio products:
ESOTERIC Grandioso T1,K1X,K1,P1X,P1X,P1,D1X,D1,K-01XD,K-01Xs,K-01X,K-01,K-03XD,K-03Xs,K-03X,K-03,K-05Xs,K-05X,K-05,K-07Xs,K-07X,K-07,,D-02X,D-02,D-05X,D-07X,P-021,P-02X,N-01XD,N-01,N-03T,N-05XD,N-05,G-0,G-0s,G-0Rb,G-02,G-03X,G-25U,TASCAM CG1000 / dCS Vivaldi clock,Paganini clock,Scarlatti Clock / MUTEC iCLOCK,MC-3+,MC-3+USB / Antelope Audio Isochrone OCX HD,OCX-V,OCX,TRINITY,PURE2,ZODIAC PLATINUM,Amari / VMV SMSL D3 / DELA N1-S38 / Phasemation HD-7A / SFORZATO DSP-Vera,DSP-Dorado,DSP-Pavo,DSC-Vera,DSC-Drado,DSC-Grus,DSP-01,DST-01,DSP-03,DSP-05 / TEAC UD-701N,UD-503,UD-505,UD505-X,NT-503,NT-505,NT-505-X / SPEC RMP-X1 / Sound Warrior SWD-CL10 (OCX) / TechDAS D-7,D7i / M2TECH EVO DAC TWO PLUS,HIFACE EVO TWO / CH Precision C1,D1 / Triode TRV-CD6SE/BK / aurender W20,N20,N150 / soulnote D-3,D-2,S-3 / SOtM sMS-200ultra,tX-USBultra,SOtM sNH-10G (require master clock input function) /GUSTARD U16,U18,R26,A26,X26pro / Singxer SU-2 / iFi Audio Pro iDSD (Signature) / UpTone Audio EtherREGEN / Audio Gd DI-20HE,DI-20,R-7HE (version 2020),R-7 (version 2020)
Other, master clock generator with 10MHz clock input, CDP, DDC, DAC, Audio HUB, etc.
*If you are uncertain about the specifications of the device you are using, please contact us with the model name.
Specification :
Accessories: instruction manual, test report, and phase noise/Alan Deviation characteristic graph
( BNC and AC power cable is not included. )
Output: 10 MHz x 2 lines, sine wave
Output level: LOW: 1.6V p-p HIGH: 3.0V p-p (2 ch common switching 50 ohm)
Output impedance: 50 ohms/75 ohms Each system is individually switchable
Output GND potential: Main body GND/insulation can be switched (each system can be switched independently)
Body size: W141mm x D210mm x H90mm (including protrusions) Optional use H100mm
Weight approx. 3 kg
External DC power supply: DC 13.5V-17V 1A
External DC plug standard: 2.1 mm/5.5 mm screwable
○ 2-year free repair guarantee
*Design and specifications are subject to change without notice for improvement.
< Q & A >
Q: Has the oven monitor LED been removed?
A: Yes, the oven monitor LED has been removed. In past cases with our products, there have been no cases where only the oven on the OCXO failed. There have been about three cases where the OCXO itself failed, but in those cases, the output signal was lost and it was not possible to lock on the connected device, so it was immediately obvious. Unfortunately, there have been over a dozen cases where the oven monitor LED failed. This was counterproductive, as the monitor function itself, which is supposed to determine the failure, was the most common cause of failure. Therefore, the oven monitor LED has been removed.
